更多>>SG-210SCBA晶體振蕩器X1G004591A02300特別適用于汽車空調系統
來源：http://m.fszhenghe.com 作者：帝國科技 2022年09月27
針對各種車載電子設備對石英晶振在高溫、抗振動等方面的更高要求，愛普生可以提供全面的符合AEC-Q200/100技術標準的汽車用車規晶振。

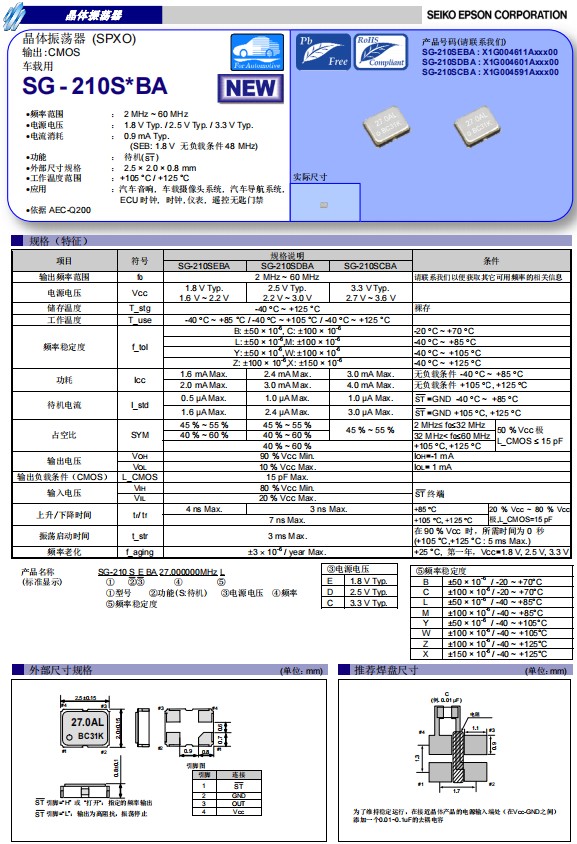

日本愛普生晶振推出汽車電子專用晶振SG-210SCBA，是一款CMOS輸出石英晶體振蕩器，頻率范圍:2MHz至60MHz，電源電壓(典型值):1.8V/2.5V/3.3V可選，電流消耗:0.9mATyp.(SEB:1.8V無負載條件48MHz)，功能:待機(ST)，工作溫度范圍:-40℃至+85℃/+105℃/+125℃，小體積晶振規格:2.5x2.0x0.9mm，四腳貼片晶振，緊湊的結構和小體積使產品適用于微空間的電路設計。該產品具有超小型，輕薄型，低電源電壓，低抖動，低功耗，耐高溫，耐熱、耐振、耐沖擊等優良的耐環境特性。應用于：汽車音響，車載攝像頭系統，汽車導航系統，汽車空調系統，ECU時鐘，時鐘，儀表，遙控?zé)o匙門禁等，符合AEC-Q200標準，是汽車電子應用中的理想選擇。
SG-210SCBA晶體振蕩器X1G004591A02300特別適用于汽車空調系統,X1G004591A04100,車載專用晶振
.JPG)
SG-210SCBA晶體振蕩器X1G004591A02300特別適用于汽車空調系統,X1G004591A04100,車載專用晶振
近幾年互聯網高速發展，隨著5G時代的到來，智能汽車的發展也越發的迅速。汽車電子對晶振的要求比消費類的科技數碼產品高的多，特別是耐高溫這一塊，汽車電子中的晶振最好能在高溫和低溫狀態下正常工作。
日本愛普生晶振推出汽車電子專用晶振SG-210SCBA，是一款CMOS輸出石英晶體振蕩器，頻率范圍:2MHz至60MHz，電源電壓(典型值):1.8V/2.5V/3.3V可選，電流消耗:0.9mATyp.(SEB:1.8V無負載條件48MHz)，功能:待機(ST)，工作溫度范圍:-40℃至+85℃/+105℃/+125℃，小體積晶振規格:2.5x2.0x0.9mm，四腳貼片晶振，緊湊的結構和小體積使產品適用于微空間的電路設計。該產品具有超小型，輕薄型，低電源電壓，低抖動，低功耗，耐高溫，耐熱、耐振、耐沖擊等優良的耐環境特性。應用于：汽車音響，車載攝像頭系統，汽車導航系統，汽車空調系統，ECU時鐘，時鐘，儀表，遙控?zé)o匙門禁等，符合AEC-Q200標準，是汽車電子應用中的理想選擇。
SG-210SCBA晶體振蕩器X1G004591A02300特別適用于汽車空調系統,X1G004591A04100,車載專用晶振
             愛普生晶振 |
 型號 |
 頻率 |
 尺寸 |
 輸出波 |
| X1G004591A00100 | SG-210SCBA | 27.000000MHz | 2.50x2.00x0.90mm | CMOS |
| X1G004591A00200 | SG-210SCBA | 49.090000MHz | 2.50x2.00x0.90mm | CMOS |
| X1G004591A00300 | SG-210SCBA | 40.000000MHz | 2.50x2.00x0.90mm | CMOS |
| X1G004591A00400 | SG-210SCBA | 8.000000MHz | 2.50x2.00x0.90mm | CMOS |
| X1G004591A00600 | SG-210SCBA | 37.007000MHz | 2.50x2.00x0.90mm | CMOS |
| X1G004591A00700 | SG-210SCBA | 27.000000MHz | 2.50x2.00x0.90mm | CMOS |
| X1G004591A00900 | SG-210SCBA | 20.000000MHz | 2.50x2.00x0.90mm | CMOS |
| X1G004591A01000 | SG-210SCBA | 33.333000MHz | 2.50x2.00x0.90mm | CMOS |
| X1G004591A01300 | SG-210SCBA | 25.000000MHz | 2.50x2.00x0.90mm | CMOS |
| X1G004591A01700 | SG-210SCBA | 4.000000MHz | 2.50x2.00x0.90mm | CMOS |
| X1G004591A02000 | SG-210SCBA | 20.000000MHz | 2.50x2.00x0.90mm | CMOS |
| X1G004591A02100 | SG-210SCBA | 33.333300MHz | 2.50x2.00x0.90mm | CMOS |
| X1G004591A02300 | SG-210SCBA | 16.000000MHz | 2.50x2.00x0.90mm | CMOS |
| X1G004591A02400 | SG-210SCBA | 25.000000MHz | 2.50x2.00x0.90mm | CMOS |
| X1G004591A02500 | SG-210SCBA | 25.000000MHz | 2.50x2.00x0.90mm | CMOS |
| X1G004591A02700 | SG-210SCBA | 33.300000MHz | 2.50x2.00x0.90mm | CMOS |
| X1G004591A02800 | SG-210SCBA | 48.000000MHz | 2.50x2.00x0.90mm | CMOS |
| X1G004591A03100 | SG-210SCBA | 25.000000MHz | 2.50x2.00x0.90mm | CMOS |
| X1G004591A03300 | SG-210SCBA | 10.000000MHz | 2.50x2.00x0.90mm | CMOS |
| X1G004591A03600 | SG-210SCBA | 33.333300MHz | 2.50x2.00x0.90mm | CMOS |
| X1G004591A03700 | SG-210SCBA | 14.745600MHz | 2.50x2.00x0.90mm | CMOS |
| X1G004591A03800 | SG-210SCBA | 37.007000MHz | 2.50x2.00x0.90mm | CMOS |
| X1G004591A04000 | SG-210SCBA | 24.000000MHz | 2.50x2.00x0.90mm | CMOS |
| X1G004591A04100 | SG-210SCBA | 16.000000MHz | 2.50x2.00x0.90mm | CMOS |
| X1G004591A04900 | SG-210SCBA | 24.576000MHz | 2.50x2.00x0.90mm | CMOS |
| X1G004591A05000 | SG-210SCBA | 22.579200MHz | 2.50x2.00x0.90mm | CMOS |
| X1G004591A05100 | SG-210SCBA | 14.745600MHz | 2.50x2.00x0.90mm | CMOS |
| X1G004591A05200 | SG-210SCBA | 24.576000MHz | 2.50x2.00x0.90mm | CMOS |
| X1G004591A05800 | SG-210SCBA | 48.000000MHz | 2.50x2.00x0.90mm | CMOS |
| X1G004591A05900 | SG-210SCBA | 10.000000MHz | 2.50x2.00x0.90mm | CMOS |
| X1G004591A06700 | SG-210SCBA | 27.000000MHz | 2.50x2.00x0.90mm | CMOS |
| X1G004591A06800 | SG-210SCBA | 12.288000MHz | 2.50x2.00x0.90mm | CMOS |
| X1G004591A07200 | SG-210SCBA | 8.000000MHz | 2.50x2.00x0.90mm | CMOS |
| X1G004591A07300 | SG-210SCBA | 30.000000MHz | 2.50x2.00x0.90mm | CMOS |
| X1G004591A07700 | SG-210SCBA | 7.904000MHz | 2.50x2.00x0.90mm | CMOS |
| X1G004591A07800 | SG-210SCBA | 12.288000MHz | 2.50x2.00x0.90mm | CMOS |
| X1G004591A08100 | SG-210SCBA | 40.000000MHz | 2.50x2.00x0.90mm | CMOS |
| X1G004591A08200 | SG-210SCBA | 16.000000MHz | 2.50x2.00x0.90mm | CMOS |
| X1G004591A08400 | SG-210SCBA | 24.576000MHz | 2.50x2.00x0.90mm | CMOS |
| X1G004591A08500 | SG-210SCBA | 16.666600MHz | 2.50x2.00x0.90mm | CMOS |
| X1G004591A08600 | SG-210SCBA | 19.200000MHz | 2.50x2.00x0.90mm | CMOS |
| X1G004591A08700 | SG-210SCBA | 12.000000MHz | 2.50x2.00x0.90mm | CMOS |
| X1G004591A08800 | SG-210SCBA | 45.000000MHz | 2.50x2.00x0.90mm | CMOS |
| X1G004591A08900 | SG-210SCBA | 40.000000MHz | 2.50x2.00x0.90mm | CMOS |
| X1G004591A09000 | SG-210SCBA | 13.333000MHz | 2.50x2.00x0.90mm | CMOS |
| X1G004591A09100 | SG-210SCBA | 11.289600MHz | 2.50x2.00x0.90mm | CMOS |
| X1G004591A09200 | SG-210SCBA | 12.000000MHz | 2.50x2.00x0.90mm | CMOS |
| X1G004591A09400 | SG-210SCBA | 6.780000MHz | 2.50x2.00x0.90mm | CMOS |
| X1G004591A09500 | SG-210SCBA | 24.545452MHz | 2.50x2.00x0.90mm | CMOS |
| X1G004591A09700 | SG-210SCBA | 48.000000MHz | 2.50x2.00x0.90mm | CMOS |
| X1G004591A09800 | SG-210SCBA | 11.250000MHz | 2.50x2.00x0.90mm | CMOS |
| X1G004591A09900 | SG-210SCBA | 12.000000MHz | 2.50x2.00x0.90mm | CMOS |
| X1G004591A10000 | SG-210SCBA | 16.666600MHz | 2.50x2.00x0.90mm | CMOS |
| X1G004591A10100 | SG-210SCBA | 33.330000MHz | 2.50x2.00x0.90mm | CMOS |
| X1G004591A10200 | SG-210SCBA | 10.240000MHz | 2.50x2.00x0.90mm | CMOS |
| X1G004591A10400 | SG-210SCBA | 24.000000MHz | 2.50x2.00x0.90mm | CMOS |
| X1G004591A10500 | SG-210SCBA | 33.333000MHz | 2.50x2.00x0.90mm | CMOS |
| X1G004591A10600 | SG-210SCBA | 11.289600MHz | 2.50x2.00x0.90mm | CMOS |
| X1G004591A10900 | SG-210SCBA | 6.144000MHz | 2.50x2.00x0.90mm | CMOS |
| X1G004591A11000 | SG-210SCBA | 3.579000MHz | 2.50x2.00x0.90mm | CMOS |
| X1G004591A11100 | SG-210SCBA | 49.500000MHz | 2.50x2.00x0.90mm | CMOS |
| X1G004591A11400 | SG-210SCBA | 26.000000MHz | 2.50x2.00x0.90mm | CMOS |
| X1G004591A11500 | SG-210SCBA | 33.330000MHz | 2.50x2.00x0.90mm | CMOS |
| X1G004591A11800 | SG-210SCBA | 6.144000MHz | 2.50x2.00x0.90mm | CMOS |
| X1G004591A11900 | SG-210SCBA | 4.000000MHz | 2.50x2.00x0.90mm | CMOS |
近幾年互聯網高速發展，隨著5G時代的到來，智能汽車的發展也越發的迅速。汽車電子對晶振的要求比消費類的科技數碼產品高的多，特別是耐高溫這一塊，汽車電子中的晶振最好能在高溫和低溫狀態下正常工作。
