更多>>ECS-2520MVLC-250-BN-TR低電流MultiVolt振蕩器適合各種時鐘應用
來源：http://m.fszhenghe.com 作者：帝國科技 2023年02月14
ECS晶振ECS-2520MVLC緊湊型低電流MultiVolt表面貼裝振蕩器具有更寬的輸出頻率范圍，適合各種時鐘應用。

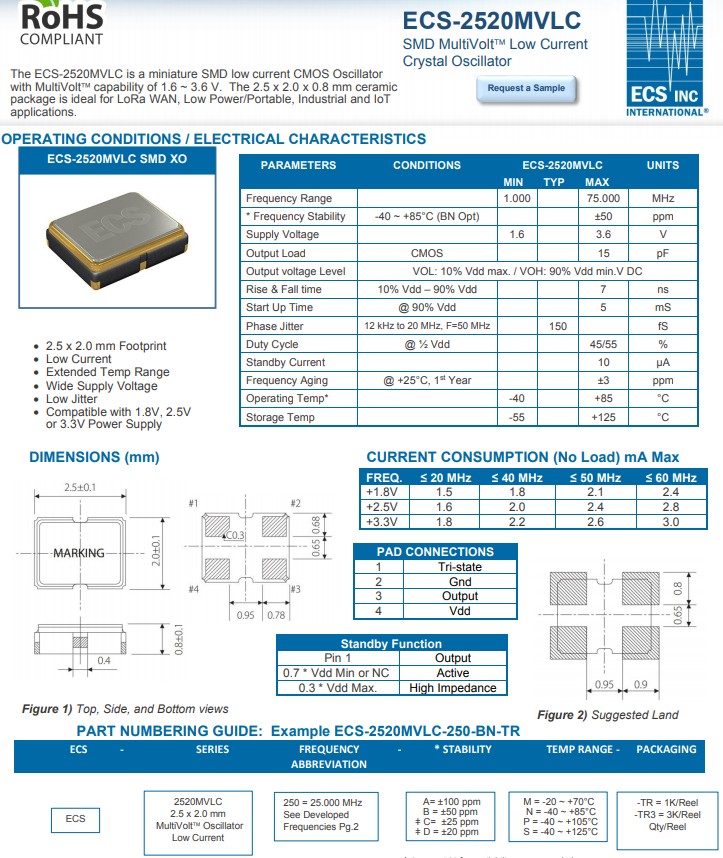

ECS-2520MVLC是一款微型SMD低電流CMOS石英晶體振蕩器，低電流振蕩器在-40°C至+85°C范圍內的穩定度為50 ppm。ECS-2520MVLC采用2.5毫米x 2.0毫米x 0.8毫米陶瓷封裝，具有多電壓功能，并且兼容1.8V、2.5V、3.0V或3.3V電源，輸出頻率范圍很寬，從1MHz到75MHz。這款器件是一款緊湊型、高性能、低電流、低成本晶振，非常適合消費電子、工業和通信領域的低功耗/便攜式，工業和物聯網應用。
ECS-2520MVLC-250-BN-TR低電流MultiVolt振蕩器適合各種時鐘應用
ECS-2520MVLC-250-BN-TR低電流MultiVolt振蕩器適合各種時鐘應用
| 圖片 | 石英晶振 | 頻率 | 頻率穩定性 | 工作溫度 |
 |
ECS-2520MVLC-010-BN-TR | 1 MHz | ±50 PPM | -40°C ~ +85°C |
|
|
NEW ECS-2520MVLC-010-CN-TR |
1 MHz | ±25 PPM | -40°C ~ +85°C |
|
|
ECS-2520MVLC-018-BN-TR | 1.8432 MHz | ±50 PPM | -40°C ~ +85°C |
|
|
ECS-2520MVLC-020-BN-TR | 2 MHz | ±50 PPM | -40°C ~ +85°C |
|
|
NEW ECS-2520MVLC-020-CN-TR |
2 MHz | ±20 PPM | -40°C ~ +85°C |
|
|
ECS-2520MVLC-020.48-BN-TR | 2.048 MHz | ±50 PPM | -40°C ~ +85°C |
| 原廠代碼 | 品牌 | 型號 | 頻率 | 工作溫度 |
| ECS-2520S25-240-FN-TR | ECS晶振 | ECS-2520S | 24MHz | -40°C ~ 85°C |
| ECS-2520S25-240-FN-TR | ECS Crystal | ECS-2520S | 24MHz | -40°C ~ 85°C |
| ECS-2520S25-240-FN-TR | ECS Crystal | ECS-2520S | 24MHz | -40°C ~ 85°C |
| ECS-2520S25-500-FN-TR | ECS Crystal | ECS-2520S | 50MHz | -40°C ~ 85°C |
| ECS-2520S25-500-FN-TR | ECS Crystal | ECS-2520S | 50MHz | -40°C ~ 85°C |
| ECS-2520S25-500-FN-TR | ECS Crystal | ECS-2520S | 50MHz | -40°C ~ 85°C |
| ECS-2520S18-100-FN-TR | ECS Crystal | ECS-2520S | 10MHz | -40°C ~ 85°C |
| ECS-2520S18-100-FN-TR | ECS Crystal | ECS-2520S | 10MHz | -40°C ~ 85°C |
| ECS-2520S18-100-FN-TR | ECS Crystal | ECS-2520S | 10MHz | -40°C ~ 85°C |
| ECS-2520S18-120-FN-TR | ECS Crystal | ECS-2520S | 12MHz | -40°C ~ 85°C |
| ECS-2520S18-120-FN-TR | ECS Crystal | ECS-2520S | 12MHz | -40°C ~ 85°C |
| ECS-2520S18-120-FN-TR | ECS Crystal | ECS-2520S | 12MHz | -40°C ~ 85°C |
| ECS-2520S18-160-FN-TR | ECS Crystal | ECS-2520S | 16MHz | -40°C ~ 85°C |
| ECS-2520S18-160-FN-TR | ECS Crystal | ECS-2520S | 16MHz | -40°C ~ 85°C |
| ECS-2520S18-160-FN-TR | ECS Crystal | ECS-2520S | 16MHz | -40°C ~ 85°C |
| ECS-2520S18-240-FN-TR | ECS Crystal | ECS-2520S | 24MHz | -40°C ~ 85°C |
| ECS-2520S18-240-FN-TR | 有源晶振 | ECS-2520S | 24MHz | -40°C ~ 85°C |
| ECS-2520S18-240-FN-TR | ECS Crystal | ECS-2520S | 24MHz | -40°C ~ 85°C |
| ECS-2520S18-250-FN-TR | ECS Crystal | ECS-2520S | 25MHz | -40°C ~ 85°C |
| ECS-2520S18-250-FN-TR | ECS Crystal | ECS-2520S | 25MHz | -40°C ~ 85°C |
| ECS-2520S18-250-FN-TR | ECS Crystal | ECS-2520S | 25MHz | -40°C ~ 85°C |
| ECS-2520S18-260-FN-TR | ECS Crystal | ECS-2520S | 26MHz | -40°C ~ 85°C |
| ECS-2520S18-260-FN-TR | ECS Crystal | ECS-2520S | 26MHz | -40°C ~ 85°C |
| ECS-2520S18-260-FN-TR | ECS Crystal | ECS-2520S | 26MHz | -40°C ~ 85°C |
| ECS-2520S18-320-FN-TR | ECS Crystal | ECS-2520S | 32MHz | -40°C ~ 85°C |
| ECS-2520S18-320-FN-TR | ECS Crystal | ECS-2520S | 32MHz | -40°C ~ 85°C |
| ECS-2520S18-320-FN-TR | ECS Crystal | ECS-2520S | 32MHz | -40°C ~ 85°C |
特點：
小體積尺寸：2.5x 2.0x 0.8mm四腳貼片晶振
擴展溫度范圍
多伏特銩兼容1.8V、2.5V、3.0V或3.3V電源
低抖動:典型值150 fS
低功耗：1.8 V、20 MHz時最大電流為1.5 mA(空載)
待機電流：10安
-40°C ~+85°C時的穩定性為50ppm
符合RoHS 3和REACH標準
應用：物聯網，存儲設備，航行，醫療(非維持生命)，移動設備，產業的，無線設備，IP攝像機
